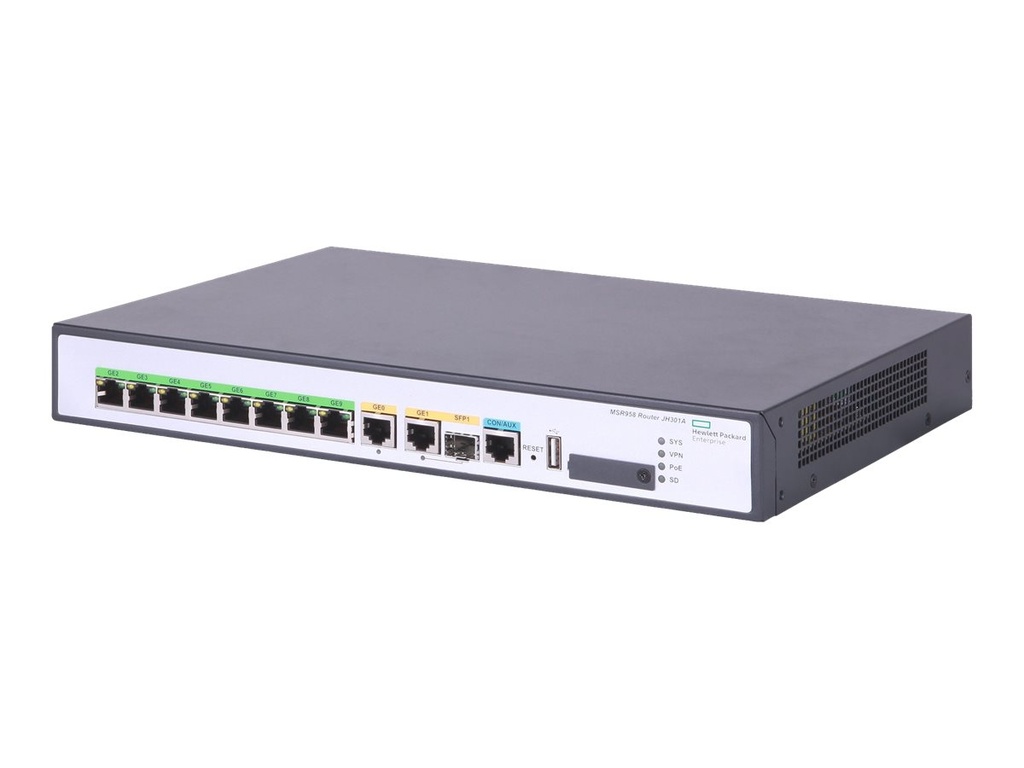

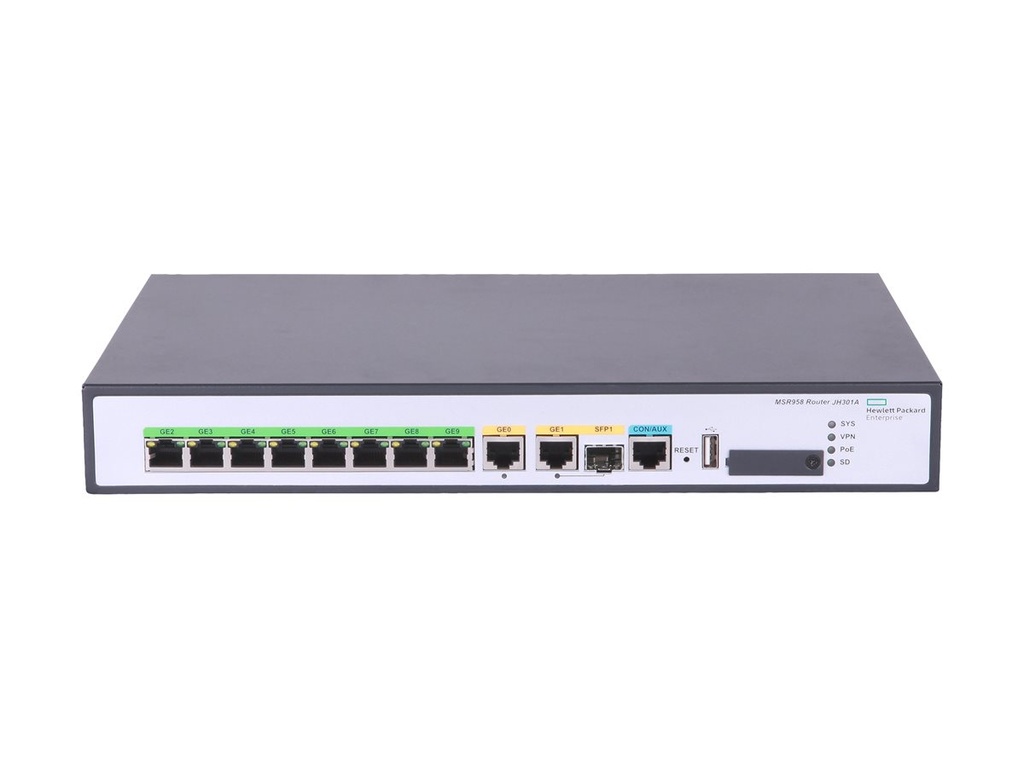

HPE FlexNetwork MSR958 PoE - Router - 8-Port-Switch

Router - 8-Port-Switch (integriert)

An Rack montierbar - 1U

Kabelgebunden

Ethernet, Fast Ethernet, Gigabit Ethernet

1 Gbps

Durchsatz (64-Byte Paketgröße): bis zu 300 kpps

VPN-Tunnel: 100
IPv4-Einträge in Routingtabelle: 10000
IPv6-Einträge in Routingtabelle: 5000
IPv4-Einträge in Weiterleitungstabelle: 10000
IPv6-Einträge in Weiterleitungstabelle: 5000

TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, AAL5, ARP, FTP, DHCP, PAP, SFTP

OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, Bidirectional PIM, MSDP, statisches IPv4-Routing, statisches IPv6-Routing, ECMP, RIPng, BGP-4+, MPLS, CIDR, BGP+, URPF

SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI

DES, Dreifach DES, MD5, AES, TLS, SHA-1, 128-Bit AES, 192-Bit AES, 256-Bit-AES

Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2)

Layer 3 switching, Layer 2 switching, NAT Support, VPN-Support, VLAN-Unterstützung, Traffic Shaping, Port-Spiegelung, Intrusion Prevention System (IPS), Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP)-Unterstützung, Rapid Spanning Tree Protocol (RSTP)-Unterstützung, Multiple Spanning Tree Protocol (MSTP)-Unterstützung, Tunnel, Unterstützung für Access Control List (ACL), Quality of Service (QoS), Committed Access Rate (CAR), Link Fragmentation and Interleaving (LFI), PoE+, Unicast Reverse Path Forwarding (URPF), DHCP-Relais, Management Information Base (MIB), Anschlussisolierung, Schutz vor Broadcaststürmen, Class of Service (CoS), Loopback, Dynamic Virtual Private Network (DVPN), Multicast Border Gateway Protocol (MBGP), Ethernet over IP (EtherIP), Type of Service (ToS), Group Domain Virtual Private Network (GDVPN), random early detection (RED), ICMP Router Discovery Protocol (IRDP), Management Information Base (MIB) II, Source-Specific Multicast (SSM)

IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, X.509, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 300 386 V1.3.3, AS/NZS CISPR 22 Class B, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003

1 x Marvell A370 800 MHz

1 GB DDR3 SDRAM

256 MB

System, VPN

WAN: 1 x Ethernet 1000 - SFP (mini-GBIC)
WAN: 1 x Ethernet 1000 - RJ-45
LAN: 8 x Ethernet 1000 - RJ-45
2 x USB 2.0
1 x Konsole - RJ-45

Internes Netzteil

Wechselstrom 120/230 V

22 Watt

1 x Konsolenkabel

Comware v7

26.6 cm

16.1 cm

4.36 cm

1 kg

Begrenzte Garantie - 1 Jahr

0 °C

45 °C

5 - 92% (nicht kondensierend)
